TPS65252RHDR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS65252RHDR
Datasheet:
Description:

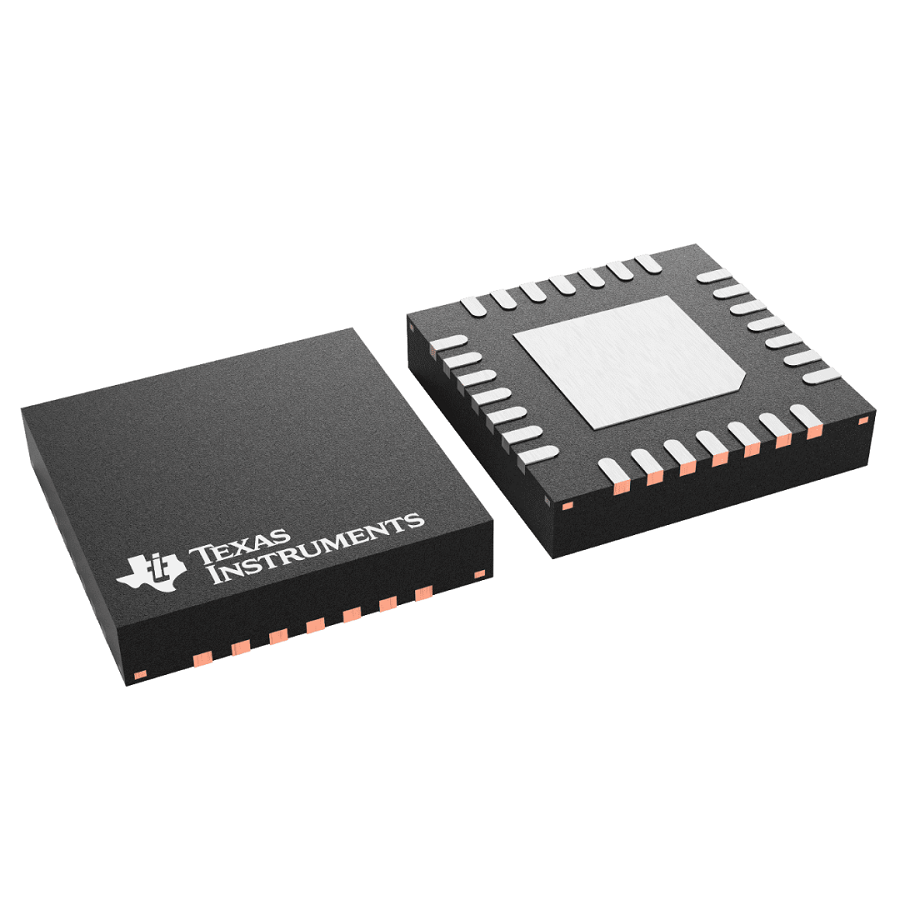

Voltage Regulators - Switching VQFN-28 SMD/SMT Buck Adjustable 15 V
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 28 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Output Current | 2 A |
| Output Voltage | 15 V |
| Output Type | Adjustable |
| Max Supply Voltage | 16 V |
| Min Supply Voltage | 4.5 V |
| Ambient Temperature Range High | 85 °C |
| Quiescent Current | 500 µA |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Switching Frequency | 2.2 MHz |
| Number of Outputs | 2 |
| Nominal Supply Current | 500 µA |
| Max Junction Temperature (Tj) | 125 °C |
| Function | Step-Down |
Stock: 1446
Distributors
pcbx
pcbxUnit Price$0.53050
Ext.Price$0.53050
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.53050 | $0.53050 |
| 10 | $0.43181 | $4.31810 |
| 25 | $0.38653 | $9.66325 |
| 50 | $0.34600 | $17.30000 |
| 100 | $0.30972 | $30.97200 |
| 300 | $0.29527 | $88.58100 |
| 500 | $0.28149 | $140.74500 |
| 1000 | $0.26801 | $268.01000 |
